Welcome to Mannina construction's pump house story.

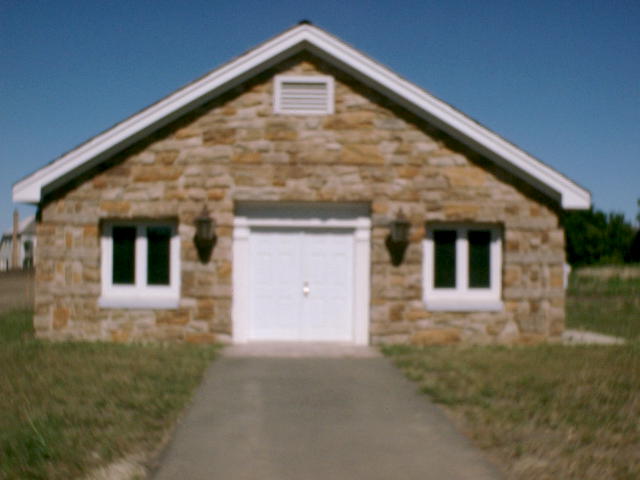

The pump house below is an insulated concrete structure. The outside walls are 19 inches thick, 14 inches of concrete, and 5 inches of foam. There are two concrete walls that make up the  14 inches. An 8 inch inner wall with 2 1/2 inches of foam on each side. The second wall is an outside 6 inch skin wall that is   stamped decorative concrete.

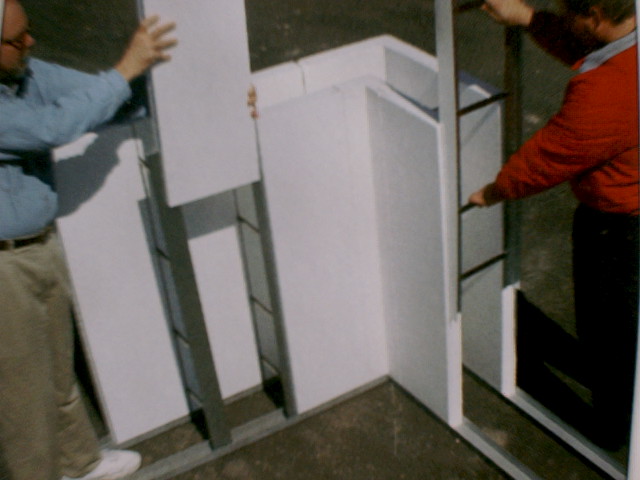

We  framed the pump house using this foam system.




After the foam system was poured, We then applied the outside rubber stamp form.

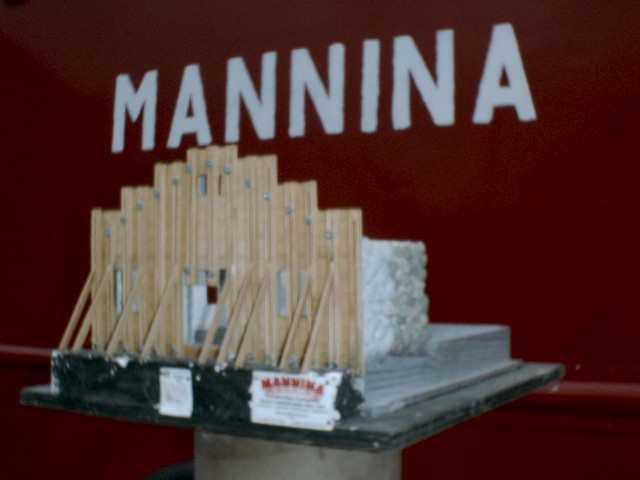

   A model had to be built to show and explain the complex design.

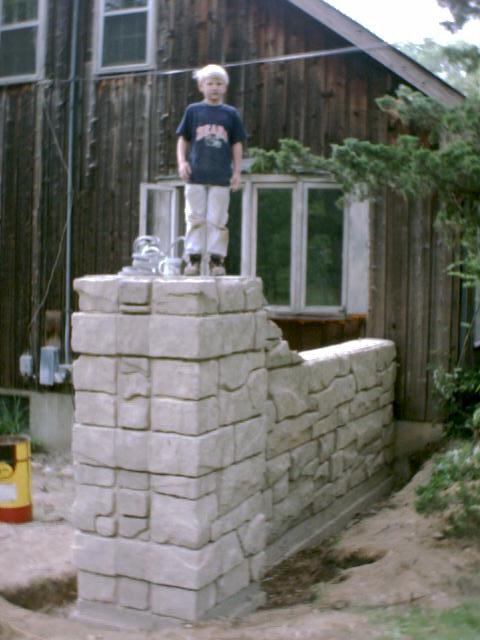

A test pour was done off site. Cody helped!


              Click here to continue story.
