Seawall on the Chain O Lakes

  A STRUCTURAL LAKEFRONT CHALLENGE. THE FINAL OUTCOME MAKES IT ALL WORTH IT.

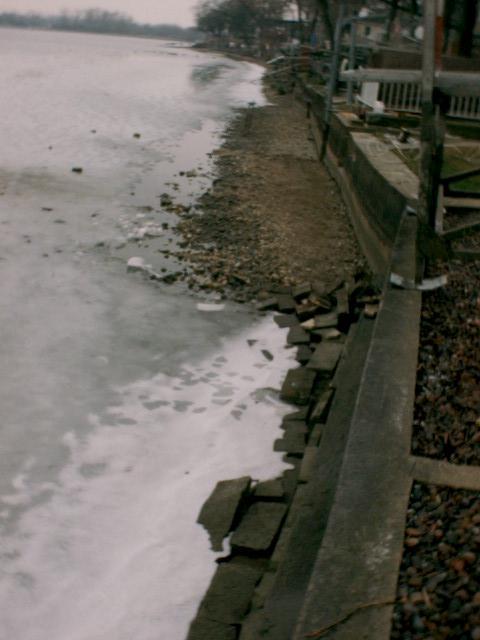

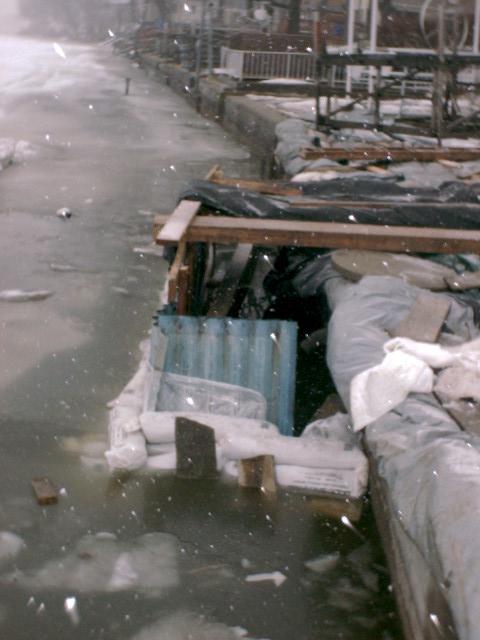

                            BEFORE            DURING

  AFTER



THIS JOB THAT MANNINA CONSTRUCTION DID POSED A GREAT CHALLENGE. FOR ONE THE WALL WAS FALLING OVER AND NEEDED IMMEDIATE ATTENTION. THE EXISTING FOOTING WAS UNDERMINED FROM THE WAVES. THE NEW FOOTING HAD TO BE POURED UNDERNEATH THE OLD FOOTING. THE NEW FOOTING WAS POURED AT 27" THICK TO BEAR GOOD SOIL. TO ADD AN EVEN GREATER CHALLENGE, THE WATER CAME UP 2' DURING CONSTRUCTION. THE BOTTOM OF OUR NEW FOOTING WE DUG WAS 3' BELOW THE WATER LEVEL. WE OVERCAME ALL THE CHALLENGES AND THE FINAL RESULTS WERE GREAT.

   SCROLL DOWN THE PAGE TO SEE MORE.

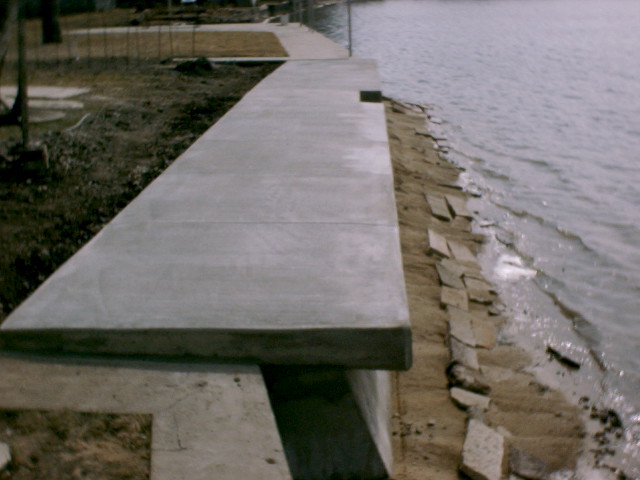

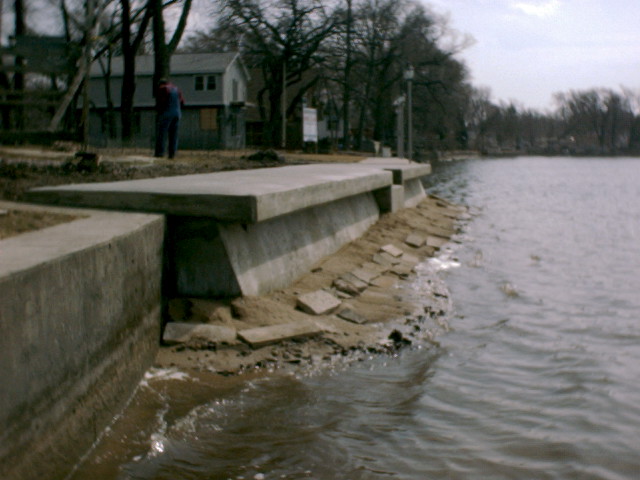

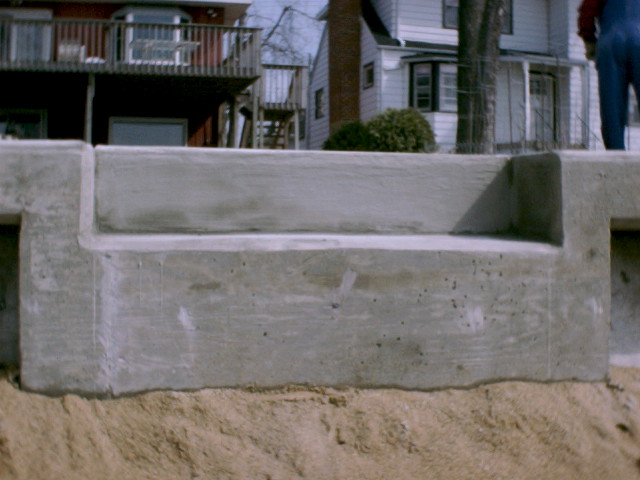

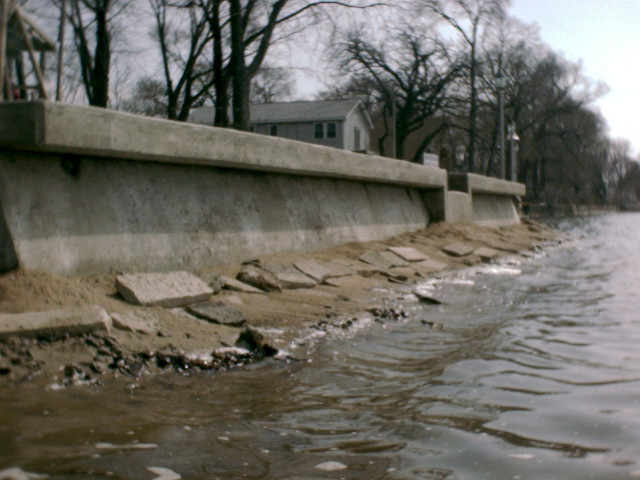

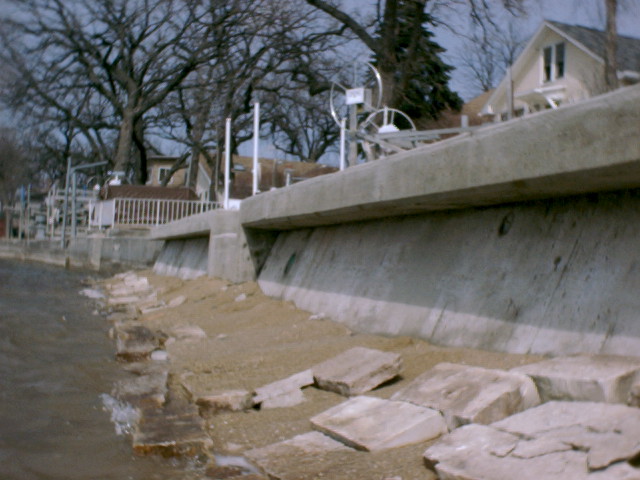

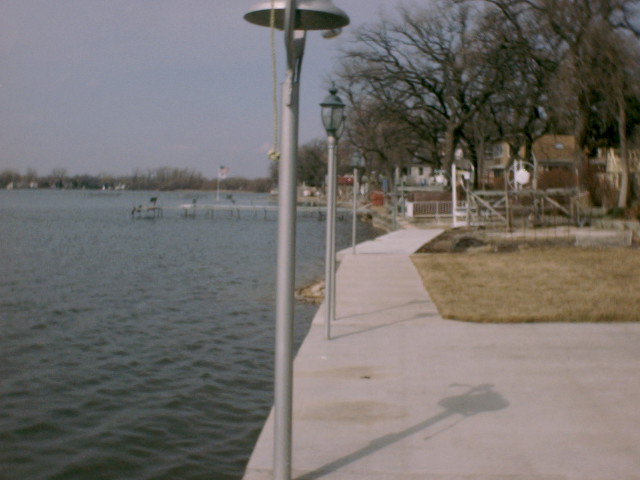

CONCRETE SEAWALL AND SLAB. JOB ALL DONE.

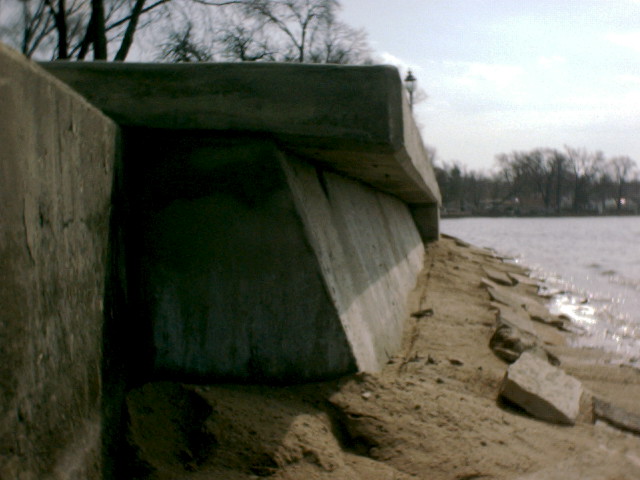

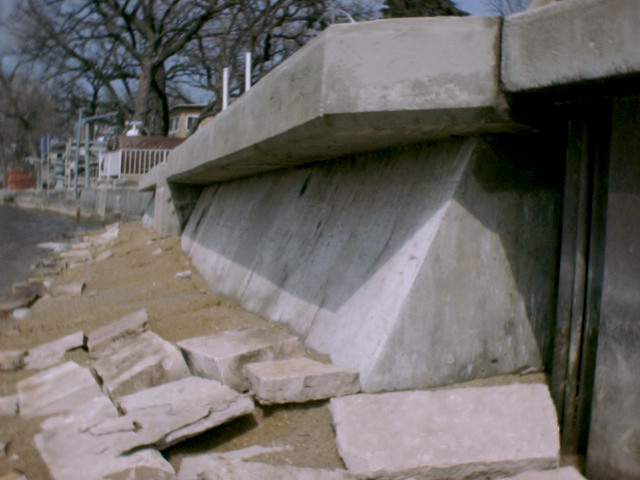

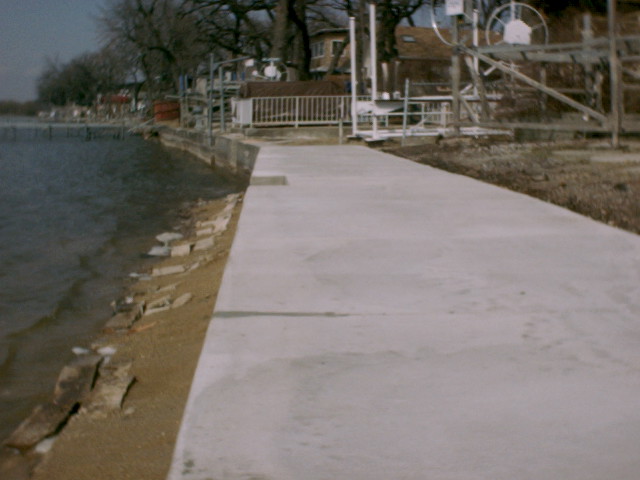

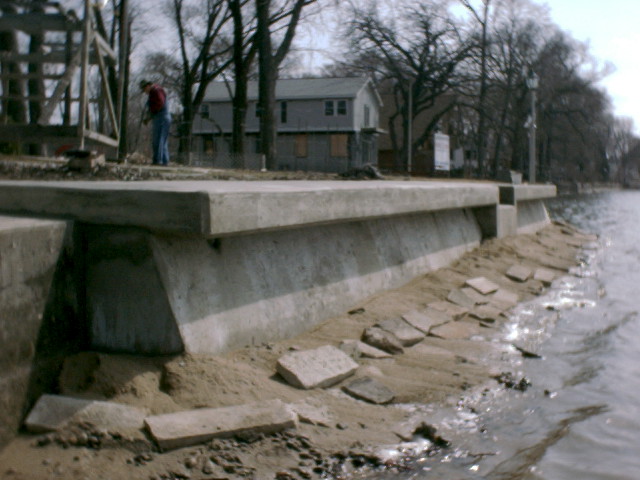

IMG_1252.jpg (92502 bytes) IMG_1253.jpg (91713 bytes) IMG_1254.jpg (81874 bytes) IMG_1255.jpg (92574 bytes)
IMG_1256.jpg (69642 bytes) IMG_1257.jpg (80817 bytes) IMG_1258.jpg (78388 bytes) IMG_1261.jpg (75457 bytes)

Check out these great sunsets on this job.

IMG_1242.jpg (61762 bytes) IMG_1220.jpg (57884 bytes) IMG_1209.jpg (59231 bytes) IMG_1210.jpg (37270 bytes)

CLICK HERE TO SEE HOW THE JOB WAS DONE FROM START TO FINISH.

CLICK HERE TO SEE SEAWALL DRAWING .

CLICK HERE TO SEE SEAWALL ELEVATIONS.
