Seawall on the Chain O Lakes

Starting to layout wall.

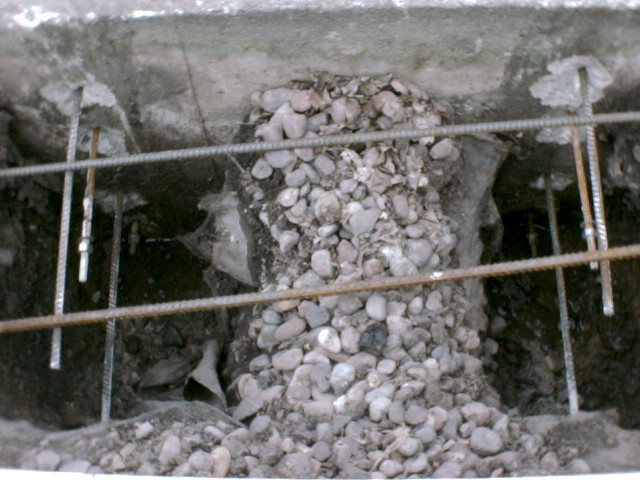

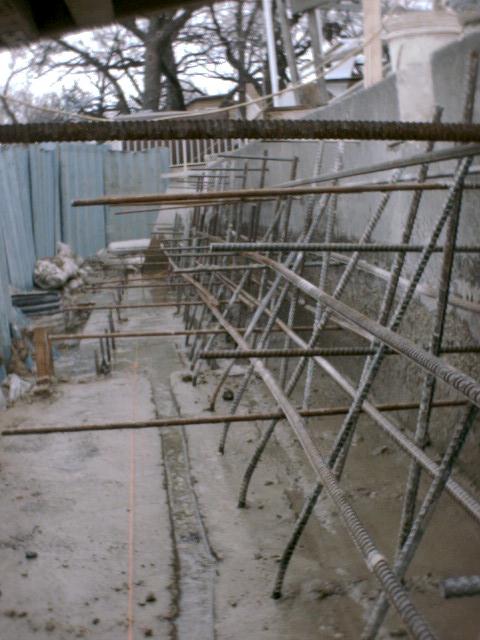

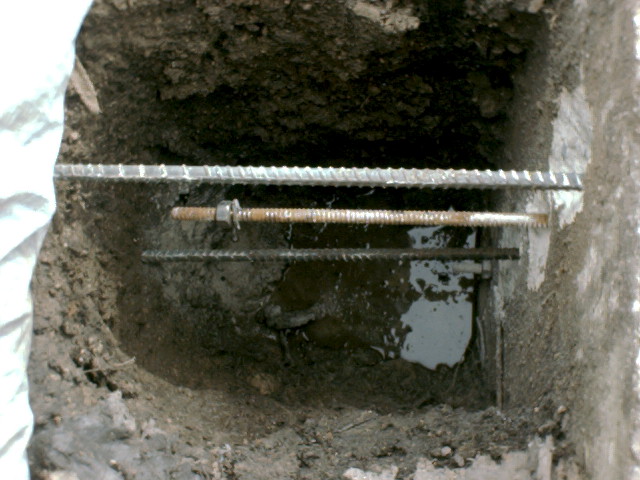

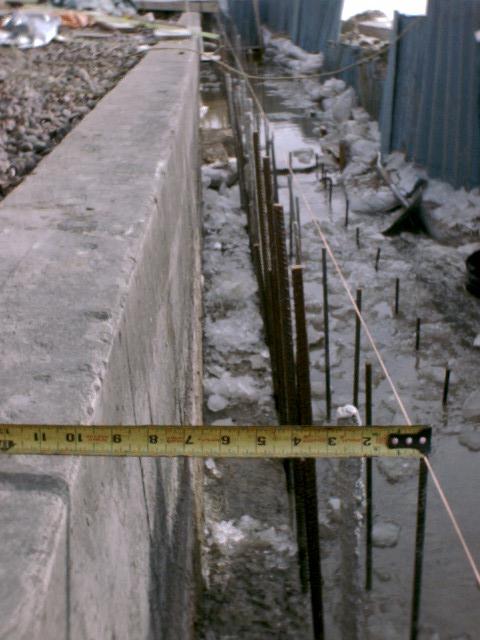

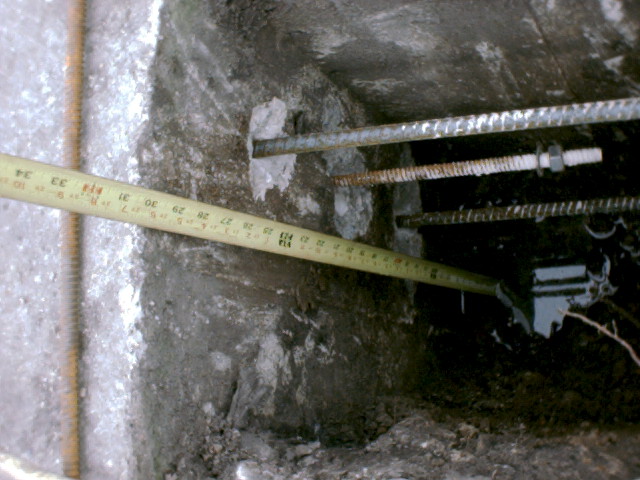

  Dug 17 postholes to help support sidewalk and to tie old seawall to new seawall. There are 4 rods drilled completely through old wall. they protrude into postholes and into new wall making all three tied together as one.

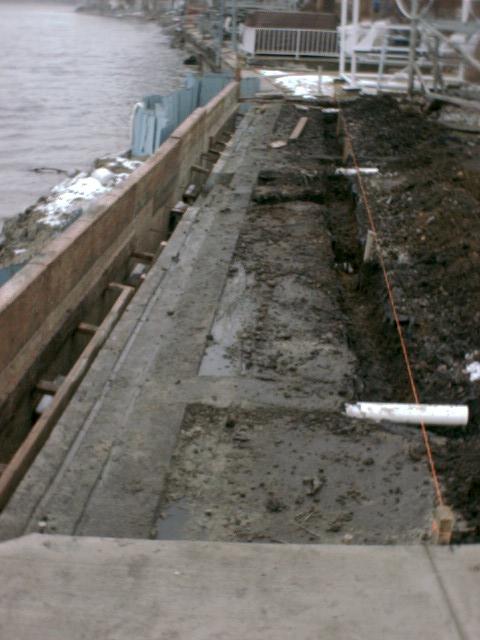

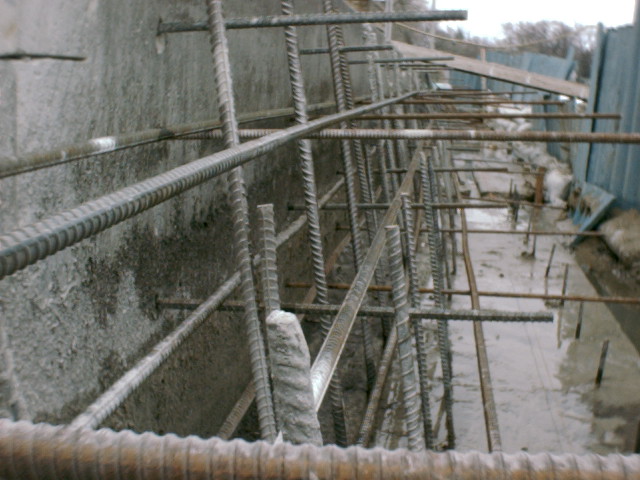

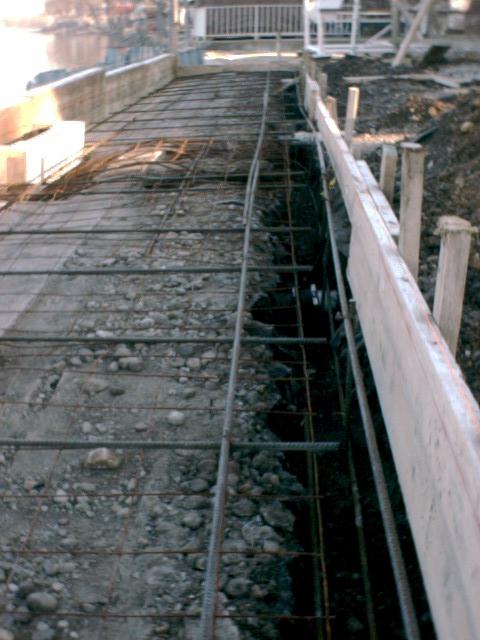

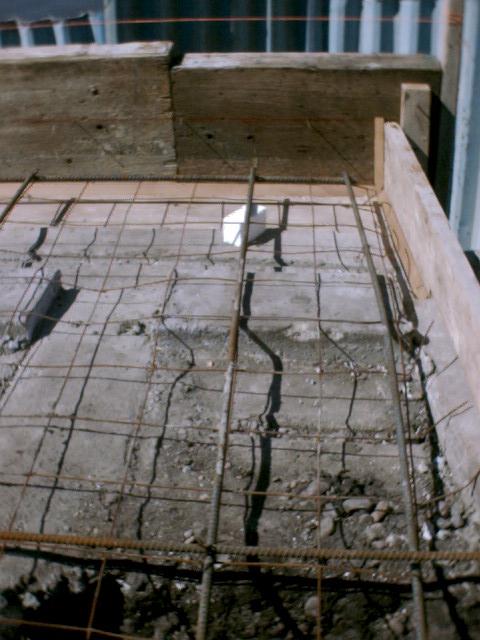

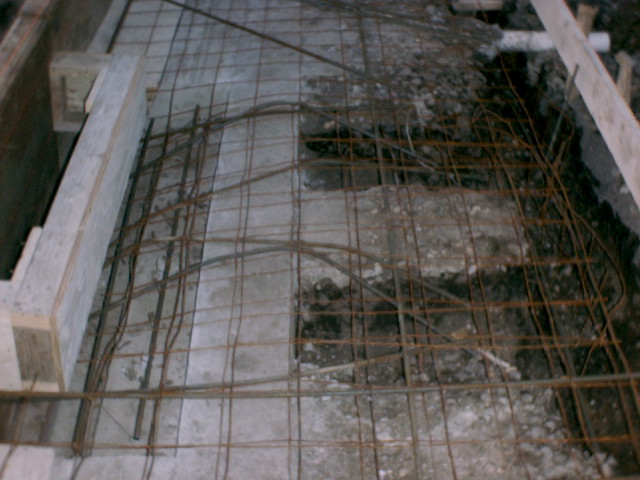

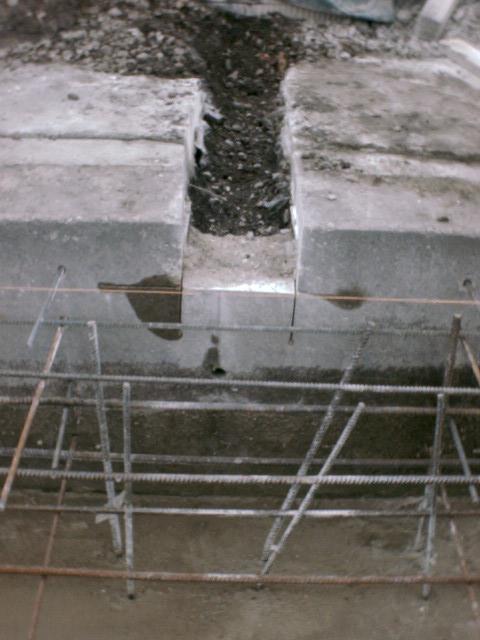

  Rebar set and drains cut in.

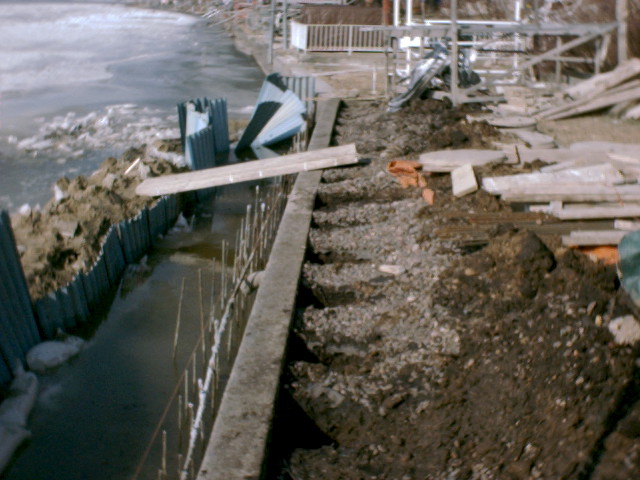

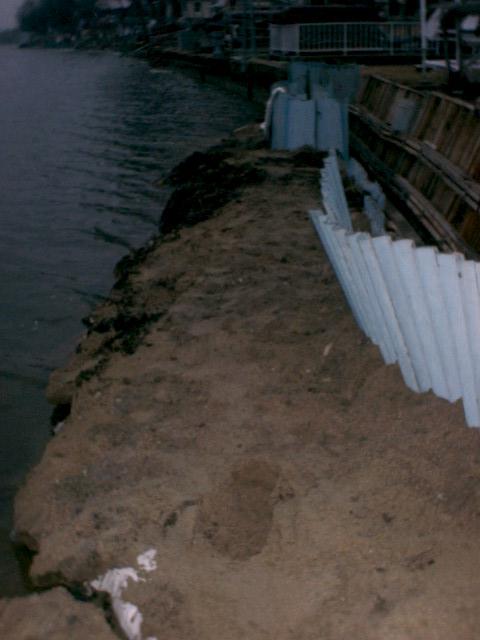

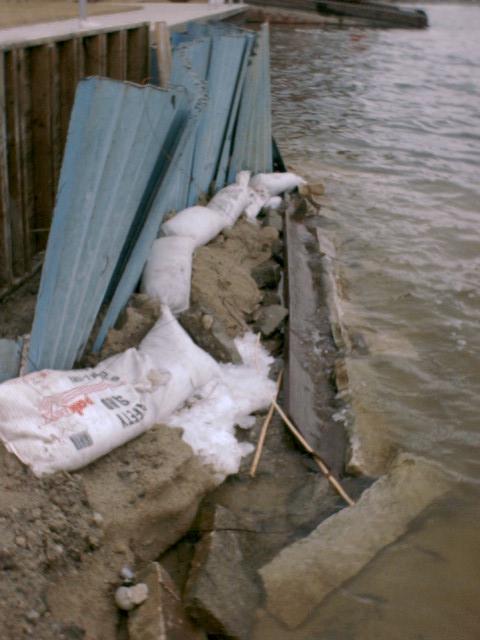

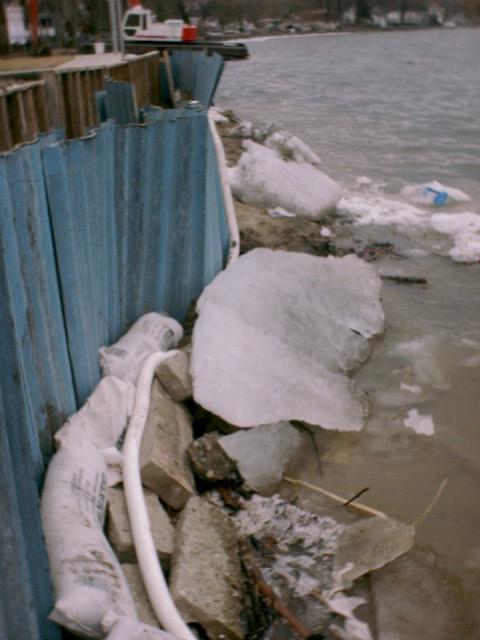

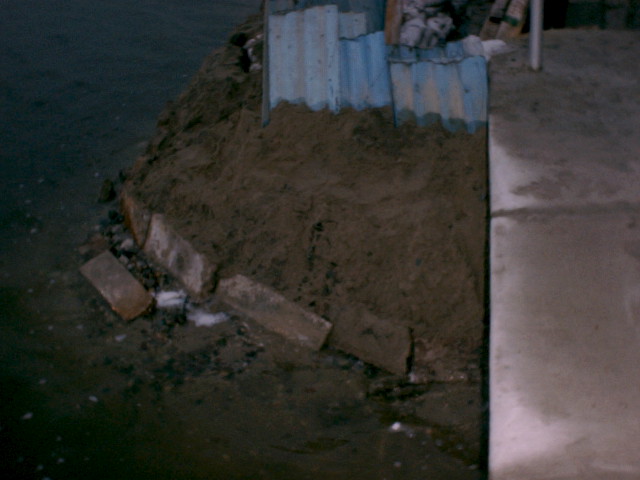

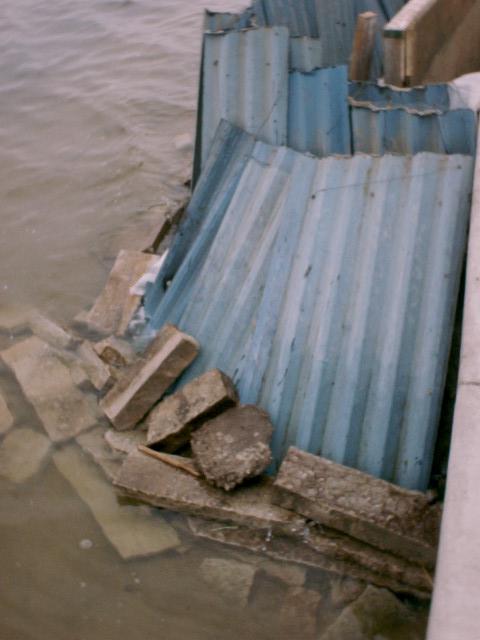

 The pictures below show how much sand washed away in just one night of waves. This is right after the ice melted.

  BEFORE                 AFTER                      BEFORE                  AFTER

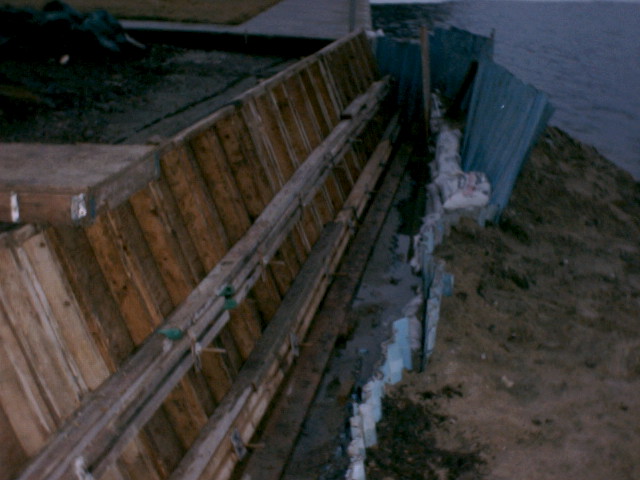

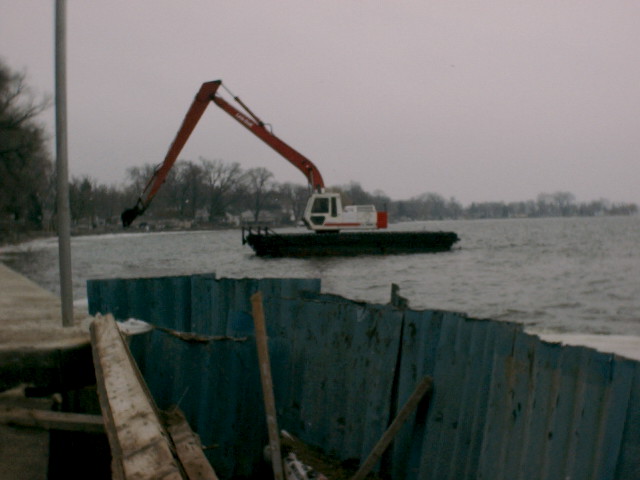

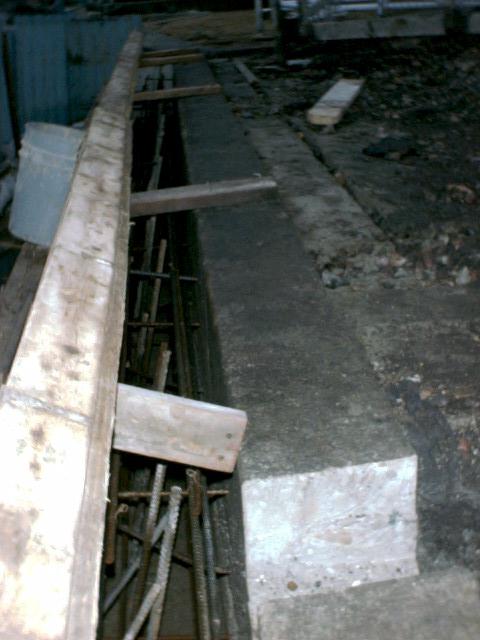

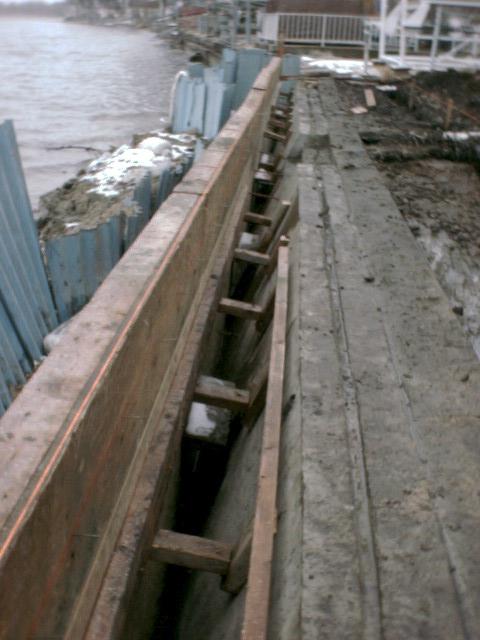

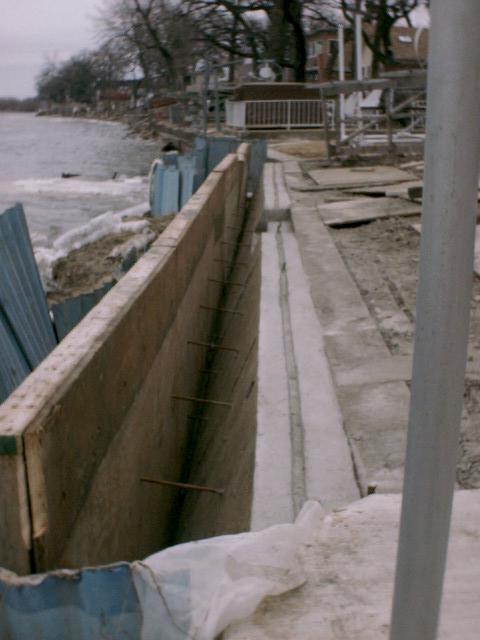

   Framed and ready to pour. Did you know backhoes could float on water?

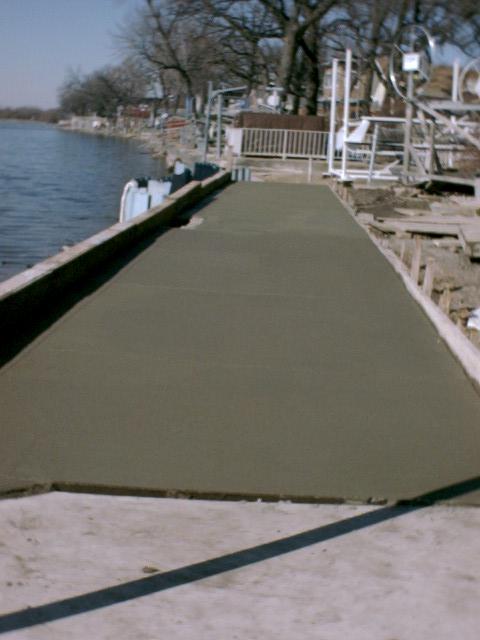

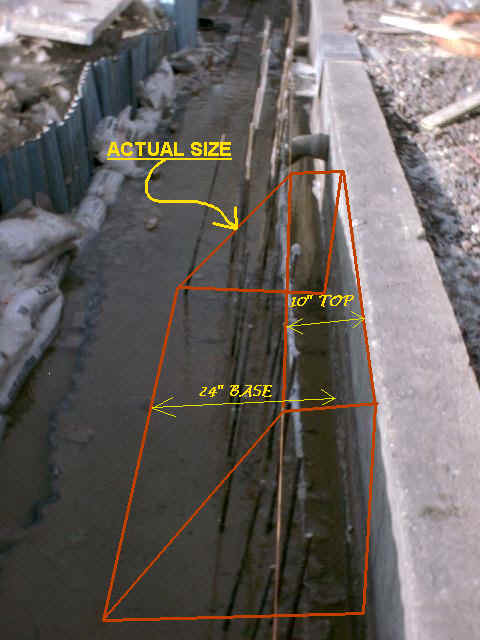

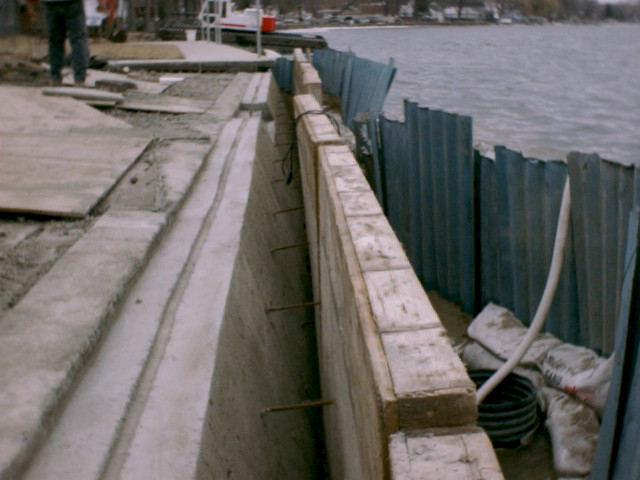

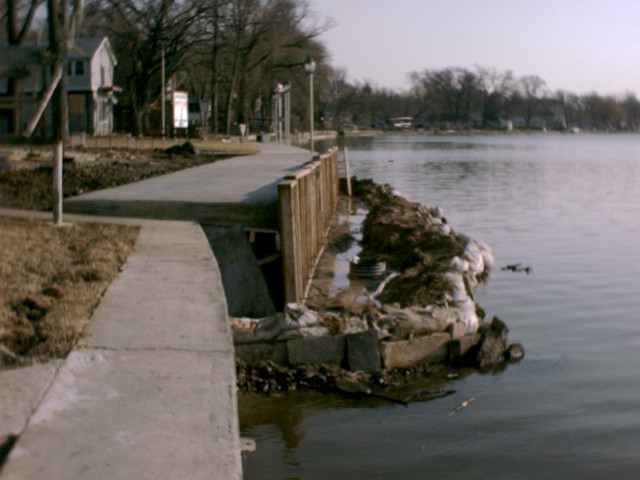

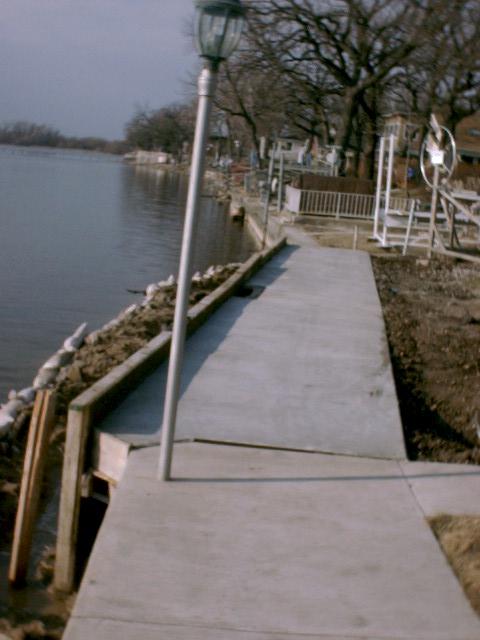

Wall poured.

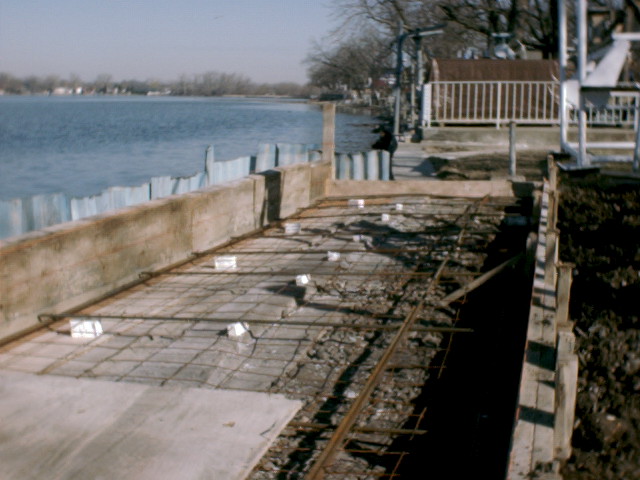

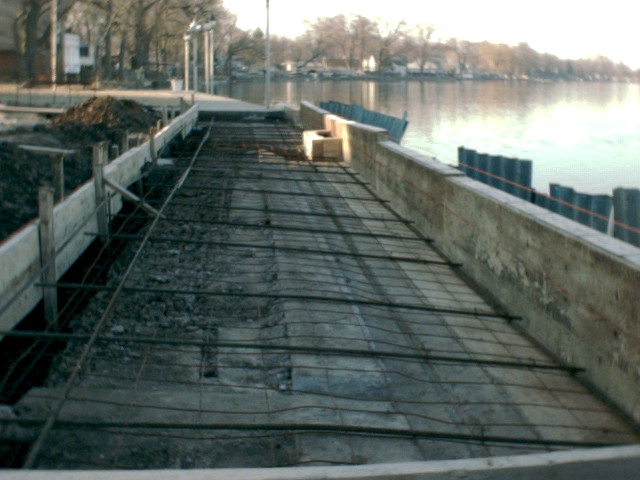

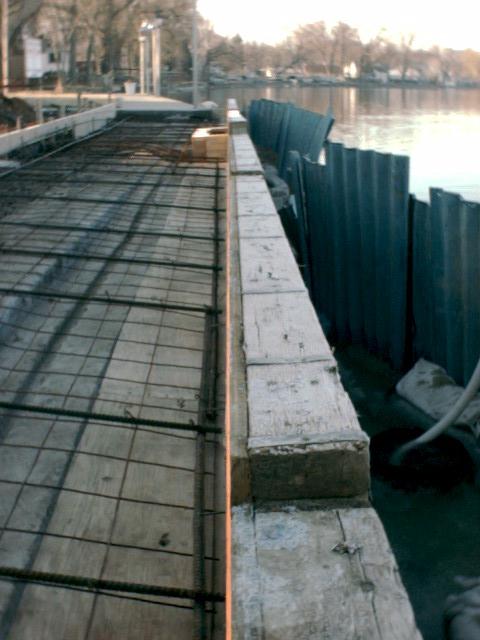

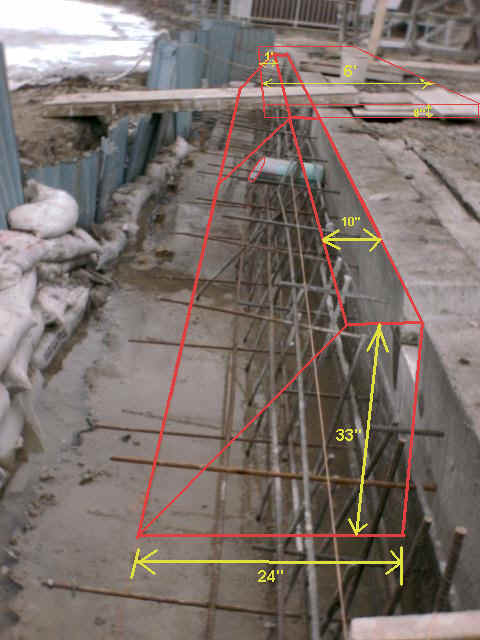

 Framing slab 8 1/2 " thick, 6' wide and 50 long. 6"x 6" wire mesh and # 5 rebar.

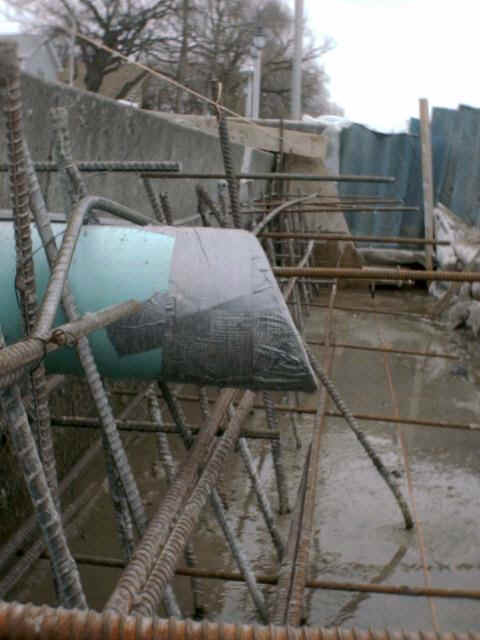

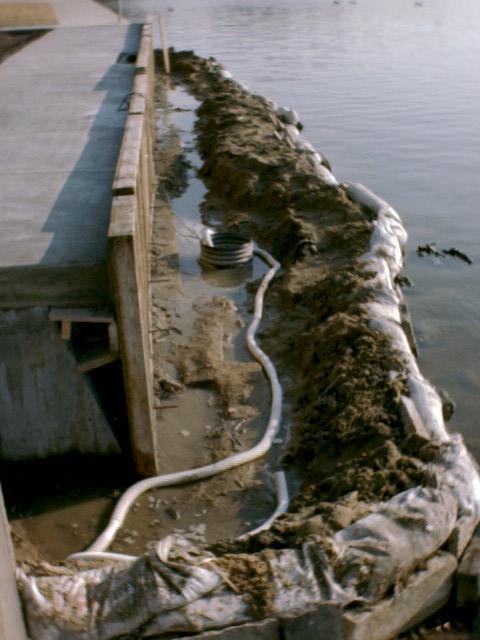

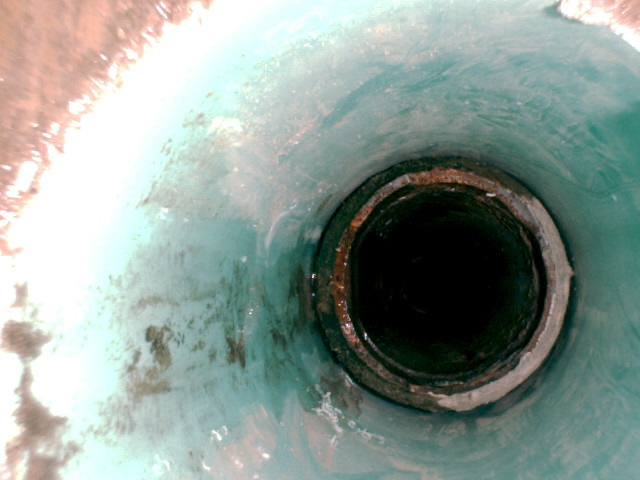

Sleeve for drain in wall.

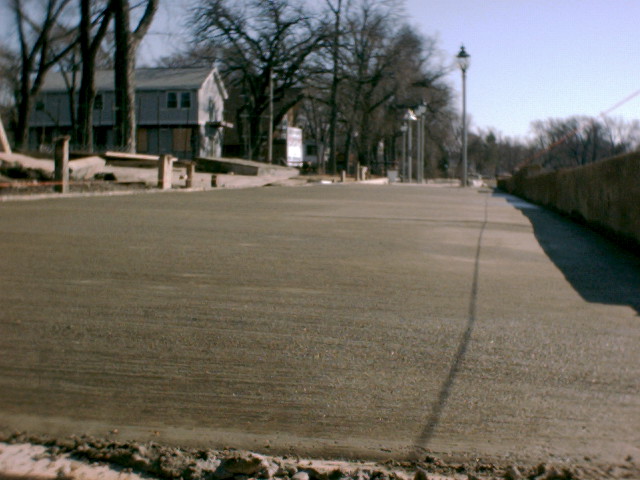

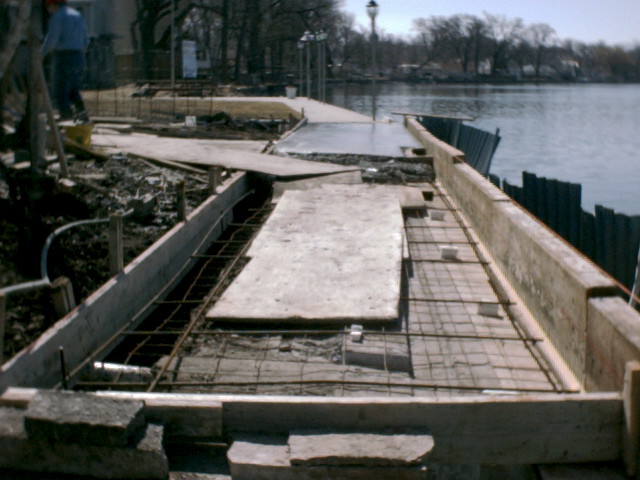

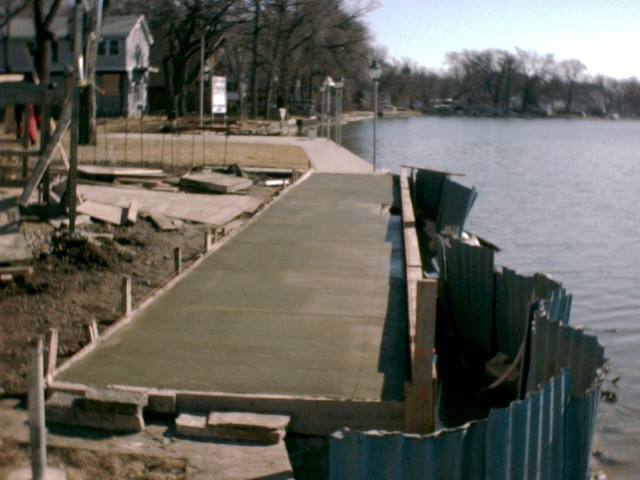

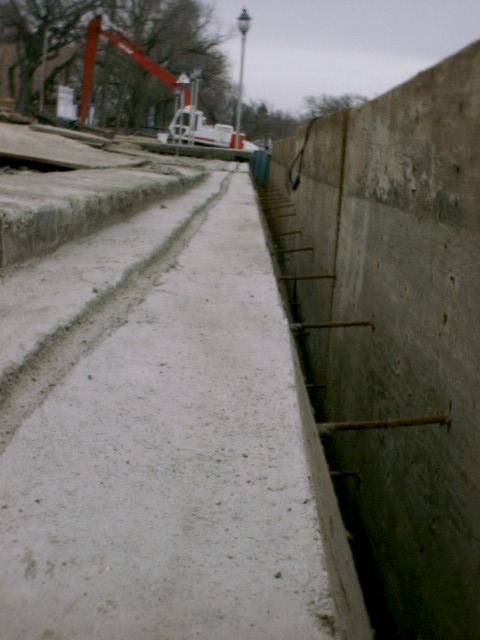

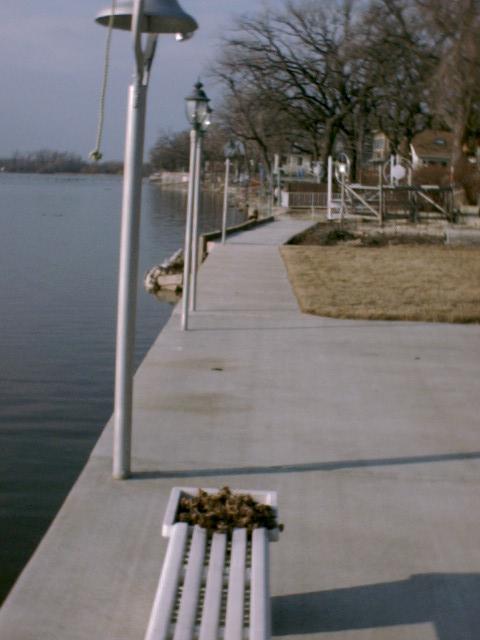

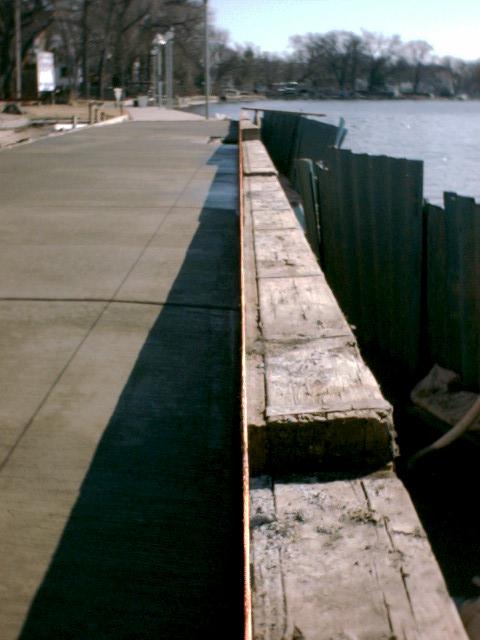

 Slab all poured. Took out metal in water. just need to strip forms after slab cures.

CLICK HERE TO SEE SEAWALL DRAWING .

CLICK HERE TO SEE SEAWALL ELEVATIONS.
